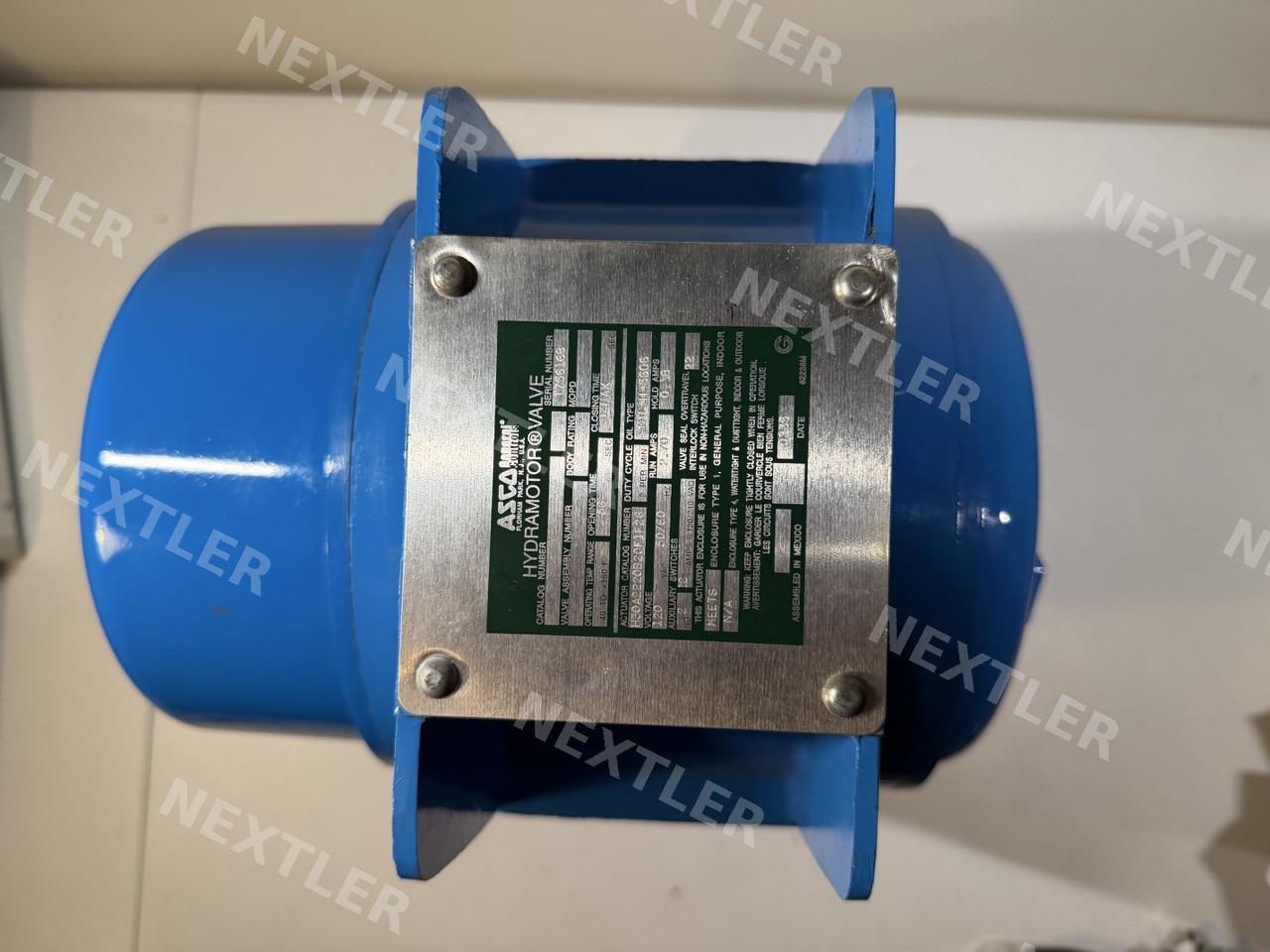

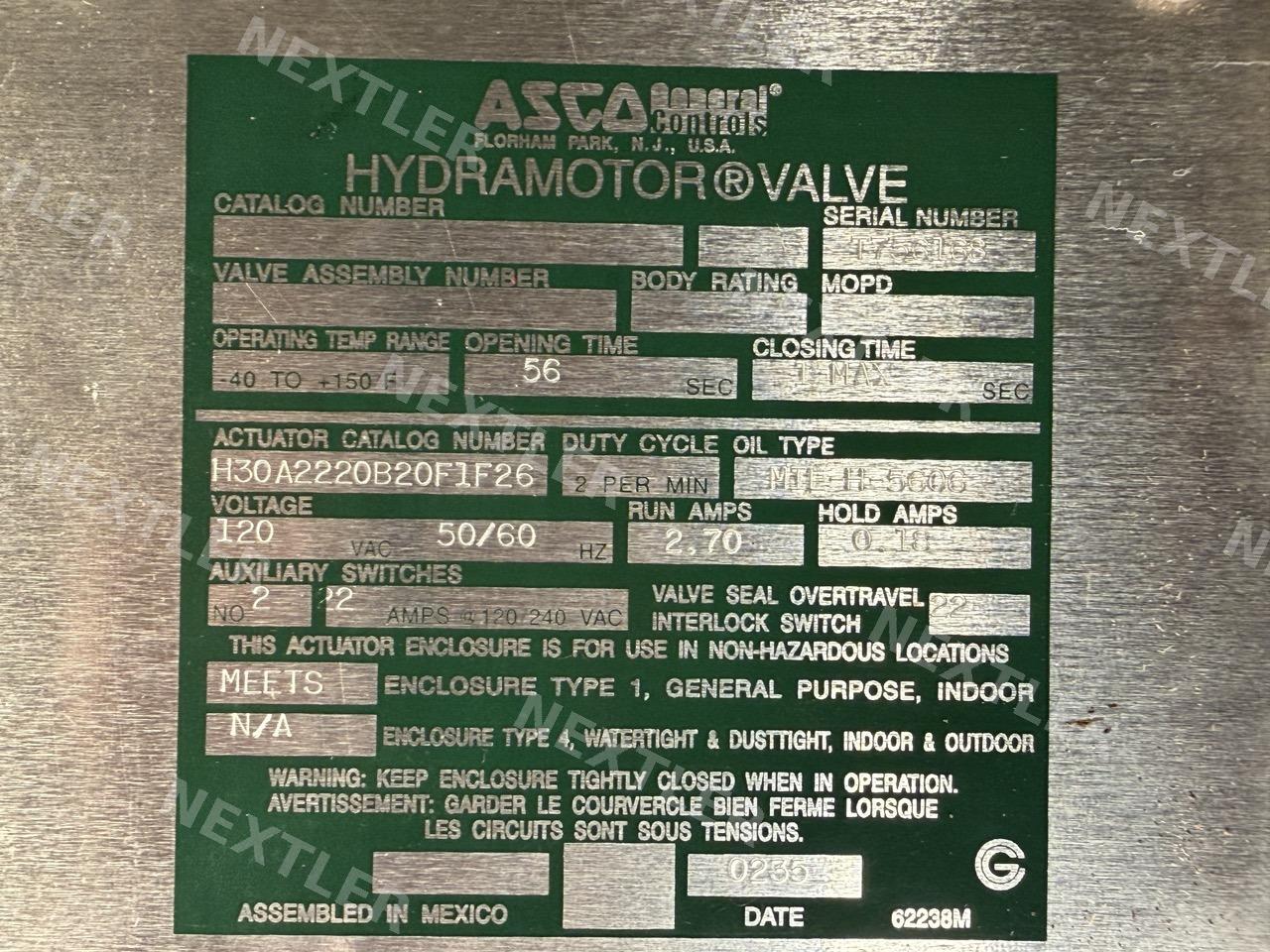

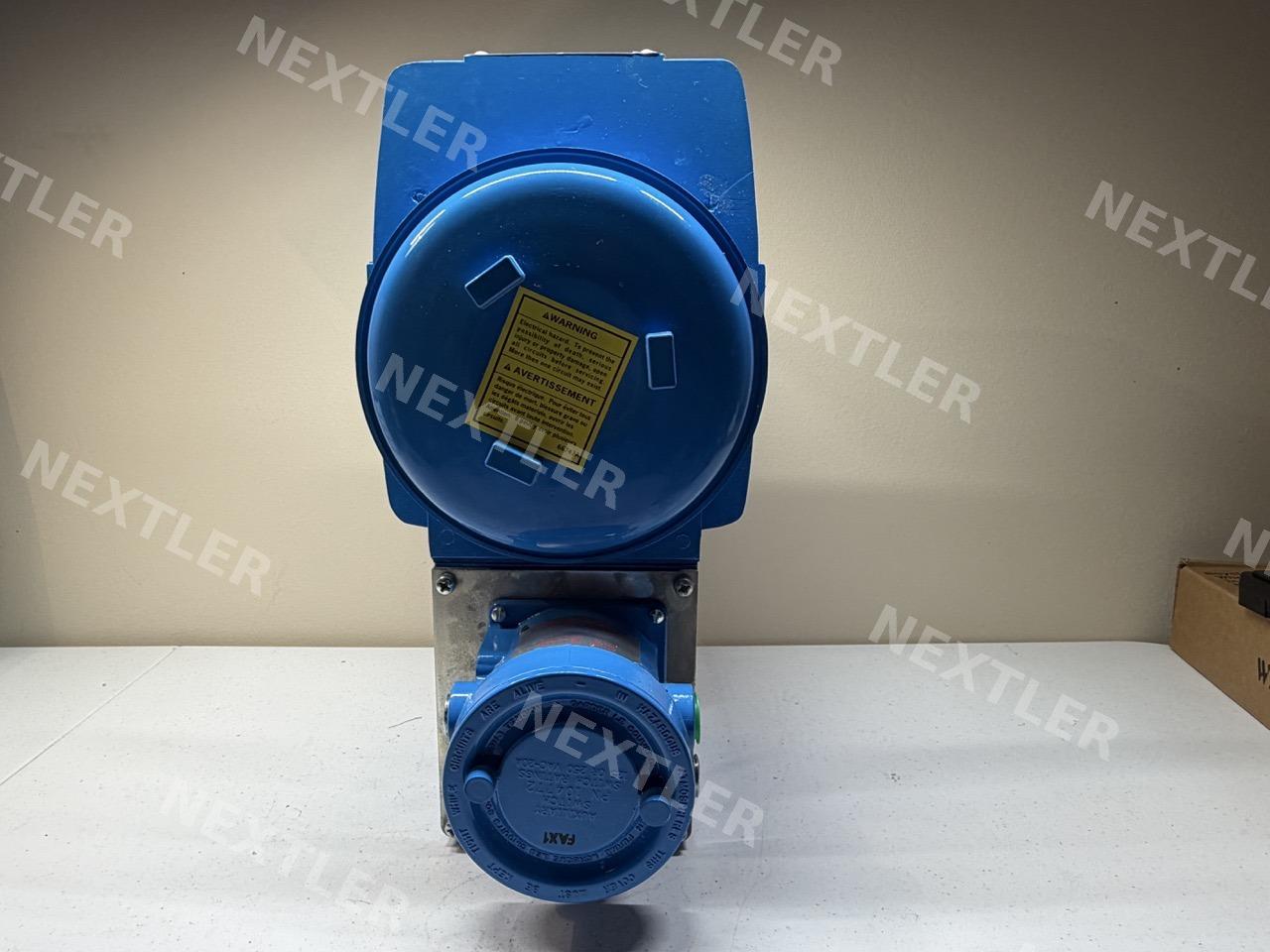

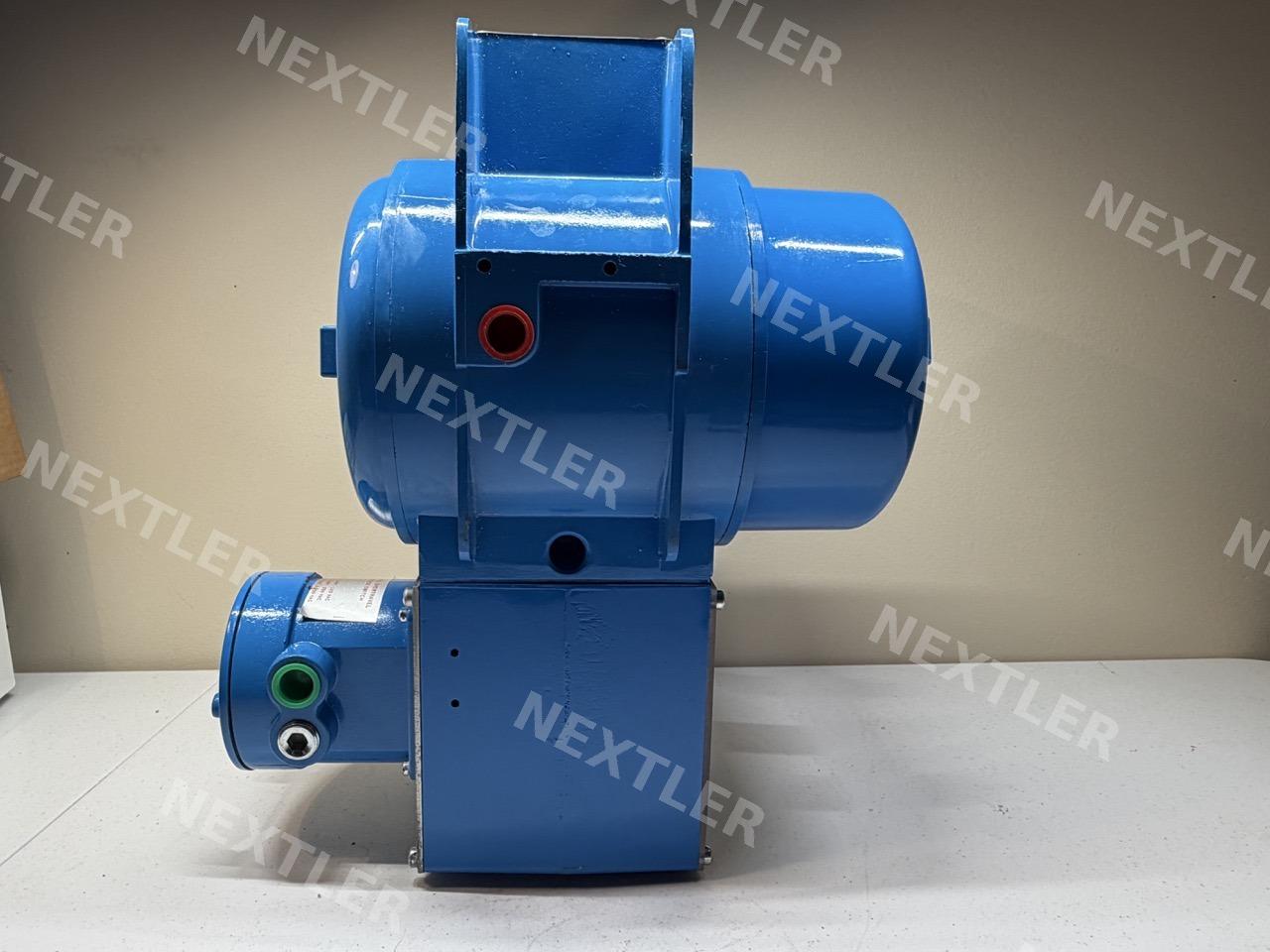

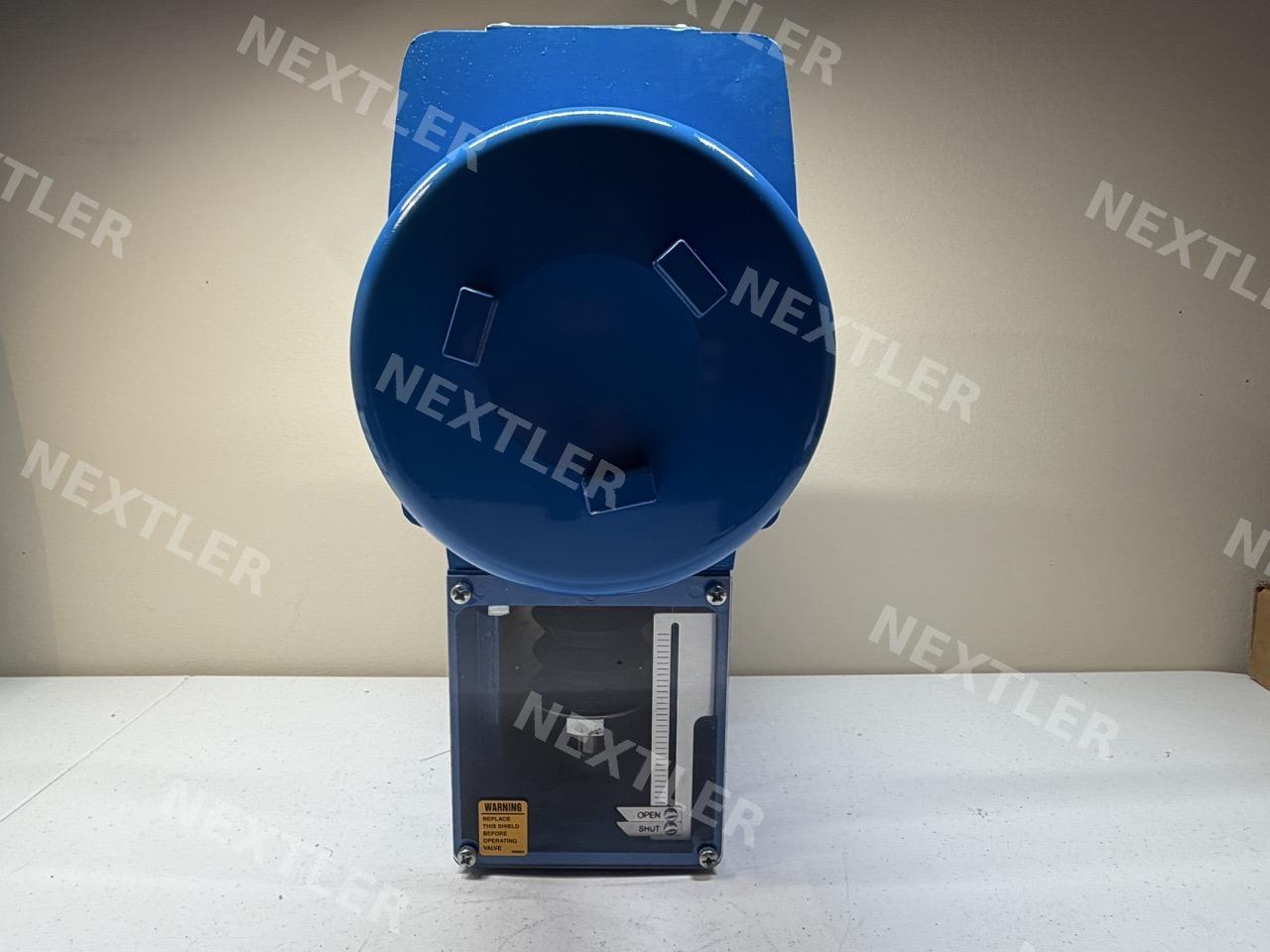

ASCO Hydramotor Actuator H30A2220B20F1F26, 120 VAC, New
ASCO
1 / 7
Technical Specifications
AVAILABLE
| Manufacturer | ASCO General Controls |
| Application | Fuel gas valve actuator (Hydramotor valve) |
| Category | Gas Turbine Fuel Gas Valve Actuator |
| Actuator Catalog Number | H30A2220B20F1F26 |
| Quantity | 1 unit |
| Voltage | 120 VAC, 50/60 Hz |
| Run Amps | 2.70 A |
| Hold Amps | 0.18 A |
| Opening Time | 56 sec |
| Closing Time | 1 sec max |
| Duty Cycle | 2 per min |
| Hydraulic Oil Type | MIL-H-5606 |
| Operating Temperature | -40 to +150 F |
| Auxiliary Switches | 2 switches, 22 A @ 120/240 VAC |

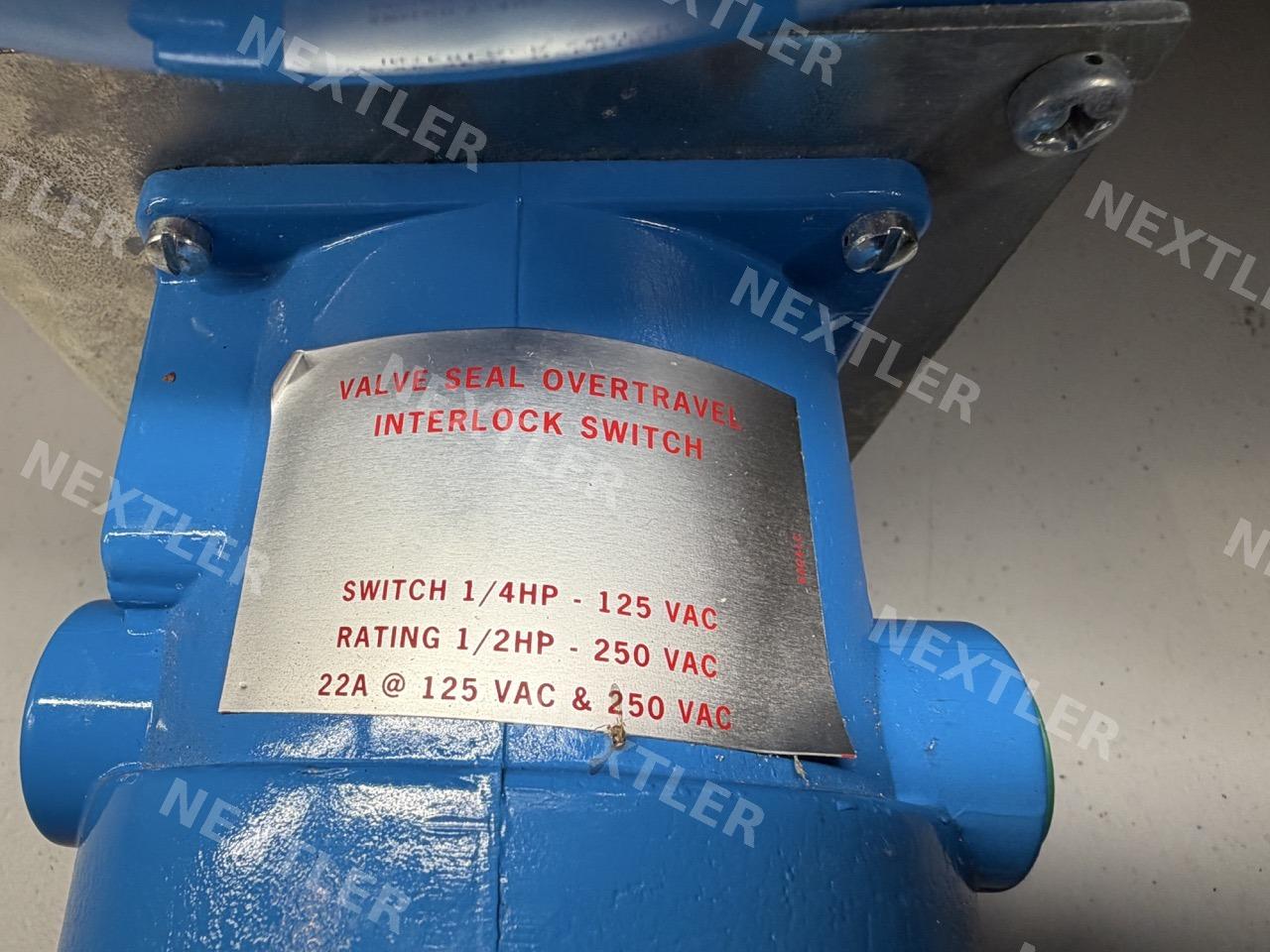

| Valve Seal Overtravel Interlock Switch | Yes, 22 A @ 125/250 VAC (1/4 HP at 125 VAC, 1/2 HP at 250 VAC) |
| Enclosure | Type 1, general purpose, indoor (non-hazardous locations) |
| Origin | Assembled in Mexico |
| Condition | New, open box (never installed or in service) |
Description
New open-box genuine ASCO OEM Hydramotor actuator, catalog number H30A2220B20F1F26, 120 VAC, with two auxiliary switches and a valve seal overtravel interlock switch. Never installed or placed in service. The box was opened only for inspection and storage. Request a quote.
