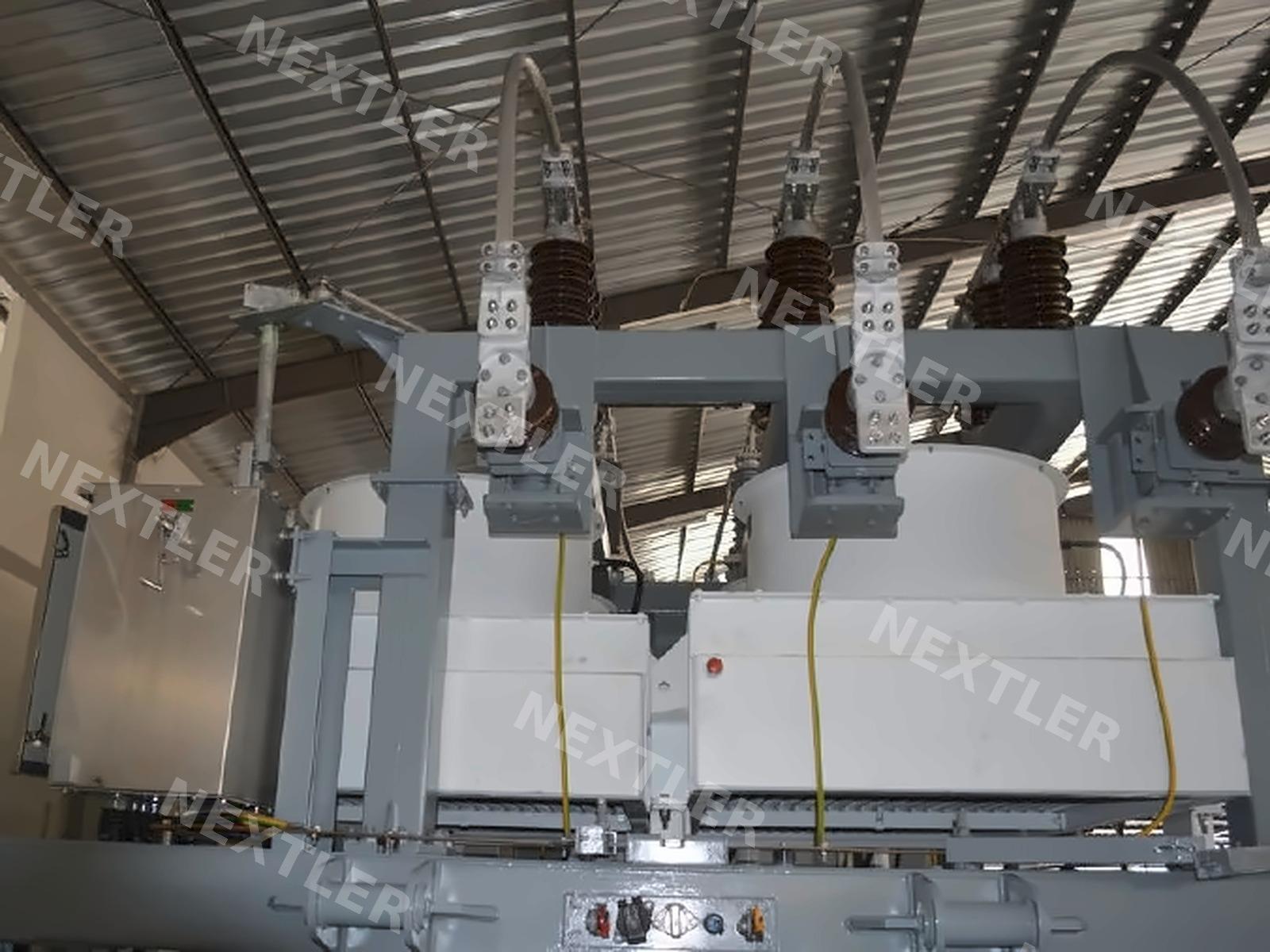

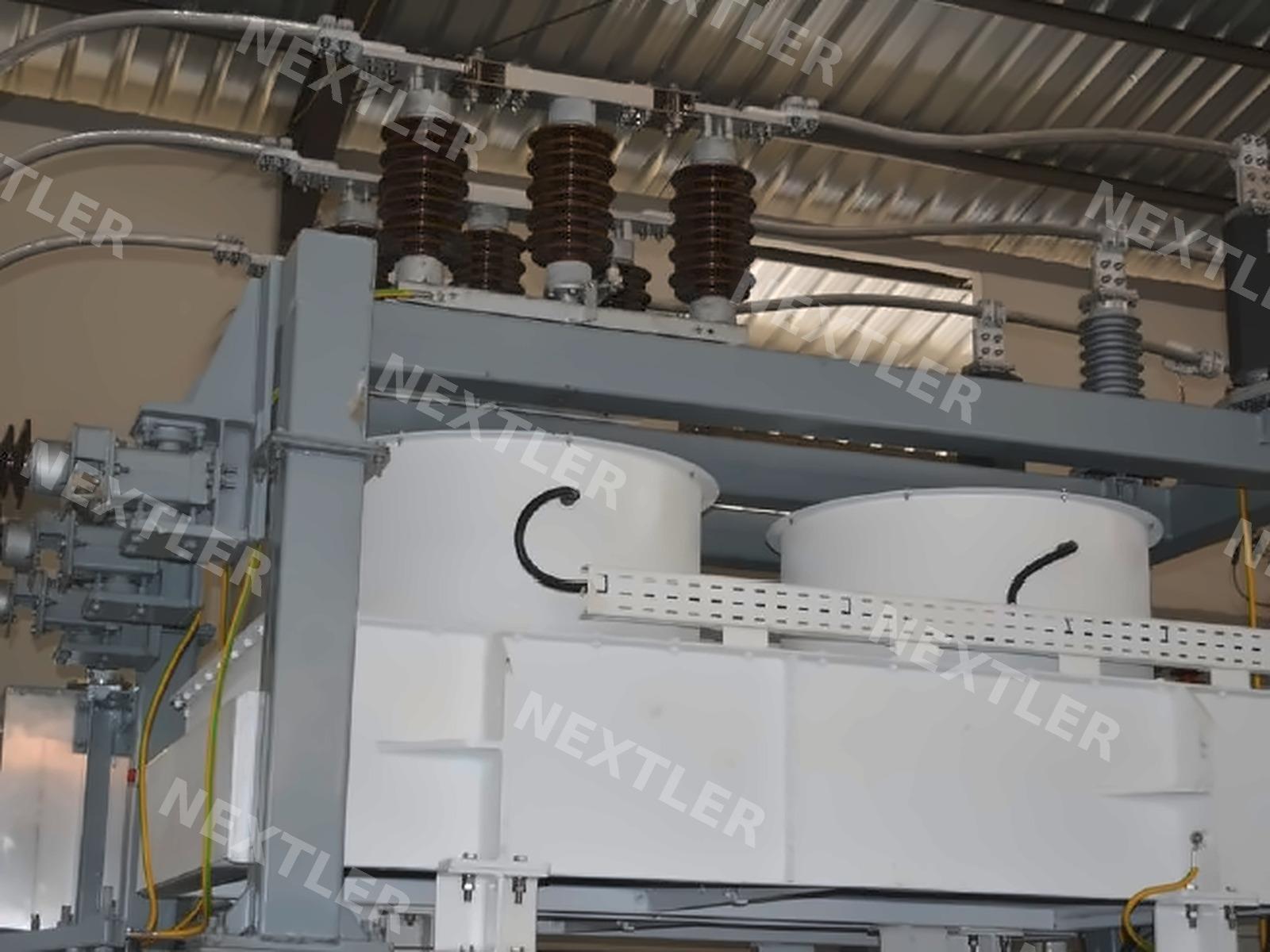

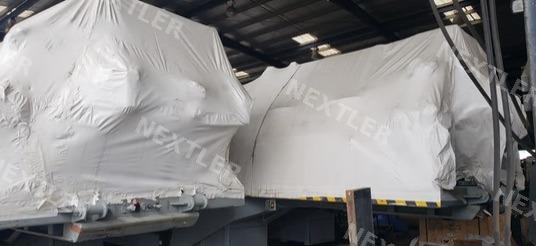

25/30 MVA Mobile Step-Up Substation, 13.8/115 kV (Surplus, Never Used)
Nextler LLC
1 / 5
Technical Specifications
AVAILABLE
| Category | Mobile Substation, Step-Up |
| Rating | 25/30 MVA |
| Voltage | 13.8/115 kV |
| Frequency | 60 Hz |
| Phases | 3 phase |
| Cooling | ODAF1/ODAF2 |
| Connection | YNd1 |
| Windings | Copper |

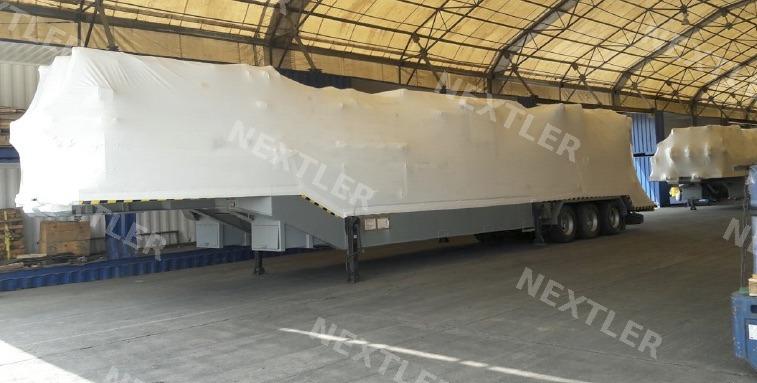

| Mounting | Low bed chassis trailer |
| High Voltage Protection | HV surge arrester |
| Voltage Measurement | HV capacitive voltage transformer |
| Switchgear | 145 kV hybrid switchgear |
| Circuit Breaker | Outdoor circuit breaker with roof bushing |
| Control | Control and protection panel |
| DC System | Battery charger and batteries |
| Auxiliaries | All auxiliary equipment for the substation |
| Quantity | 1 unit |
| Condition | Surplus, never used |
Description
Surplus, never used 25/30 MVA step-up mobile substation, 13.8/115 kV, 60 Hz, 3 phase, with ODAF1/ODAF2 cooling and YNd1 connection, copper windings, mounted on a low bed chassis trailer. Includes HV surge arrester, capacitive voltage transformer, 145 kV hybrid switchgear, outdoor circuit breaker with roof bushing, control and protection panel, battery charger, batteries and all auxiliary equipment. Request a quote.
